630895
Tecumseh Carburetor 630895
| Sl.No | Part Description | Part number | Notes | Purchase |
|---|---|---|---|---|
| 1 | "Shaft, Throttle lever | 631830 | ||
| 2 | Spring, Return | 631767 | replaces 632016 | |
| 3 | Shutter, Throttle | 631036 | ||
| 4 | Screw, Throtttle & Choke shutter | 650506 | ||
| 5 | Spring, Regulating screw | 630766 | ||
| 6 | Screw, Idle regulating | 651025 | replaces 650417 | |
| 7 | Spring, Choke positioning | 630735 | ||
| 9 | Shutter, Choke | 630736 | ||
| 10 | Screw, Idle adjustment | 630898 | ||
| 11 | Spring, Adjustment screw | 630738 | ||
| 12 | Washer, Adjustment screw | 630739 | ||
| 13 | "O" Ring, Adjustment screw | 630740 | ||
| 14 | Screw, Main adjustment | 630737 | ||
| 15 | Plug, Welch | 630748 | ||
| 16 | Extension, Throttle Lever | 630896 | ||
| 17 | Plug, Welch | 632554 | replaces 630746 | |
| 18 | Spring, Valve | 631049 | ||
| 19 | Gasket, Valve Seat | 630742 | ||
| 20 | Inlet Needle, Seat, Gasket & Spring Assembly. | 630932A | ||
| 21 | Gasket, Diaphragm | 630750A | replaces 630750 | |
| 22 | Diaphragm Assembly. | 630978 | ||
| 23 | Cover, Diaphragm | 630751 | ||
| 24 | Screw, Cover | 650545 | ||
| 25 | Shaft & Lever Assembly., Choke | 631829 | replaces 630987 | |
| 26 | Screw, Throttle lever ext. | 650782 | ||
| 31 | Fitting, Fuel inlet | 632164 | replaces 631803 | |
| 35 | Repair Kit | 631893A | replaces 631893 |

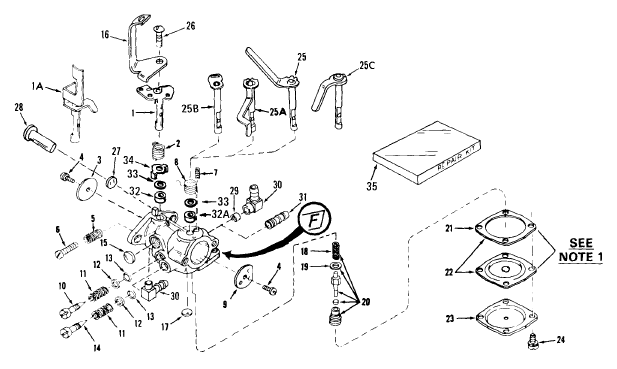

Listed above are Tecumseh 630895 diagram and parts lookup table. Ensure fast repair and rebuilding of carburetor accurately.
