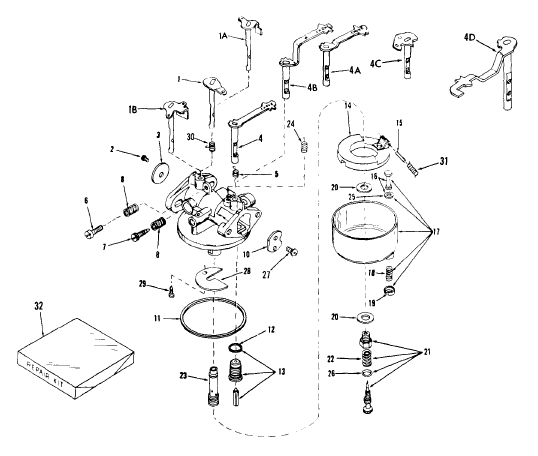

Tecumseh Carburetor 630966

630966

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle30715
2Screw, Sems, 6-32 x 3/1630357
3Shutter, Throttle30726
4BShaft & Lever Assembly., Choke31351
6Screw, Throttle adjusting650399replaces 630605
7"Needle, Idle adjusting27112
8Spring, Adjusting needle27114
10Shutter, Choke30927
11Gasket, Bowl-to-body30356
12Gasket, Valve seat27108
13Valve, Seat & Gasket Assembly29156
14Float30354
15Shaft, Float27106
16Stem Assembly, Bowl drain27136Areplaces 27136
17Fuel Bowl & Drain Assembly32131replaces 30350
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly, Power adjusting28945
22Spring, Power needle630786
23Nozzle, Main30355
24Spring, Choke stop27113
25Gasket, Drain stem27554
26"Oll Ring27544
27Screw, Sems650506replaces 630606
28Baffle, Carburetor30815
29Screw, Baffle30817
31Spring, Float shaft31503
32Repair Kit31390
