630999

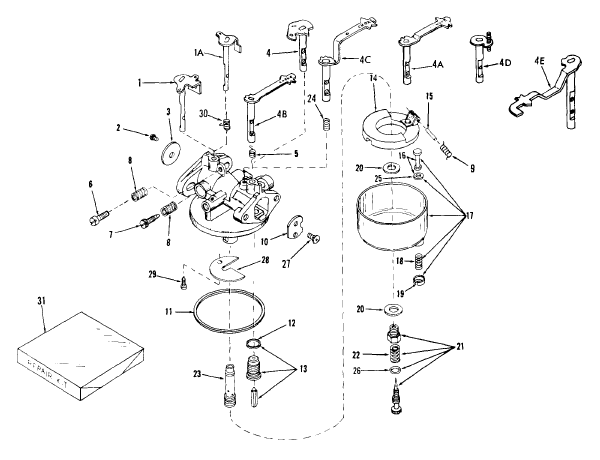

Tecumseh Carburetor 630999

630999

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle31350
2Screw, Sems, 6-32 x 3/1630357
3Shutter, Throttle30726
4Shaft & Lever Assembly., Choke31502
5Spring, Choke return31375
6Screw, Throttle adjusting650399replaces 630605
7Needle, Idle adjusting27112
8Spring, Adjusting needle27114
9Spring, Float shaft31503
10Shutter, Choke30927
11Gasket, Bowl-to-body30356
12Gasket, Valve seat27108
13Valve, Seat & Gasket Assembly.29154
14Float30354
15Shaft, Float27106
16Stem Assembly., Bowl drain27136Areplaces 27136
17Bowl & Drain Assembly.,32131replaces 30350
18Spring, Bowl drain27136Areplaces 27137
19Retainer Bowl grain stem27136Areplaces 27138
20Gasket, bowl-to-body27110Areplaces 27110
21Needle Assembly., Power adjusting28945
22Spring, Power needle630786
23Nozzle, Main30355
25Gasket, Drain stem27554
26"O" Ring27544
27Screw, Sems650506replaces 630606
28Baffle, Carburetor30815
29Screw, Baffle30817
30Spring, Throttle return31352
31Repair Kit30359
