631001A

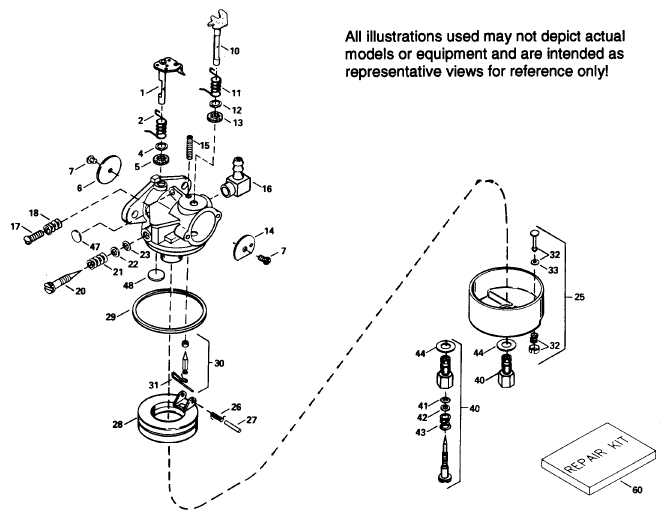

Tecumseh Carburetor 631001A
| Sl.No | Part Description | Part number | Notes | Purchase |
|---|---|---|---|---|
| 0 | "Carburetor | 631001A | ||
| 1 | SHAFT & LEV | 631615 | ||
| 2 | SPRING | 631767 | ||
| 4 | WASHER | 631184 | ||
| 5 | WASHER | 631183 | ||
| 6 | SHUTTER | 631036 | ||
| 7 | Screw, 4-40 x 1/4" | 650506 | ||
| 10 | SHAFT & LEV | 31868 | ||
| 11 | SPRING | 632042 | ||
| 12 | WASHER | 631184 | ||
| 13 | WASHER | 631183 | ||
| 14 | SHUTTER | 31837 | ||
| 15 | SPRING | 630735 | ||
| 16 | FUEL FITTING | 632527 | ||
| 17 | SCREW | 651025 | replaces 650417 | |
| 18 | SPRING | 630766 | ||
| 20 | ADJUSTMENT SCREW | 631838 | ||
| 21 | SPRING | 630766 | ||
| 22 | WASHER | 630739 | ||
| 23 | O RING | 630740 | ||
| 25 | Float Bowl (no drain) | 631867 | ||
| 27 | FLOAT SHAFT | 631024 | ||
| 28 | FLOAT | 632019A | replaces 632019 | |
| 29 | GASKET | 631028A | replaces 631028 | |
| 30 | Inlet Needle, Seat & Clip Assembly. | 631021B | replaces 631021 | |
| 31 | CLIP | 631022 | ||
| 40 | POWER SCREW | 31839 | ||
| 41 | O RING | 630740 | ||
| 42 | WASHER | 630739 | ||
| 43 | SPRING | 630738 | ||
| 44 | GASKET | 27110A | replaces 27110 | |
| 47 | WELCH PLUG | 630748 | ||
| 48 | WELCH PLUG | 631027 | ||
| 60 | REPAIR KIT | 31840 |
