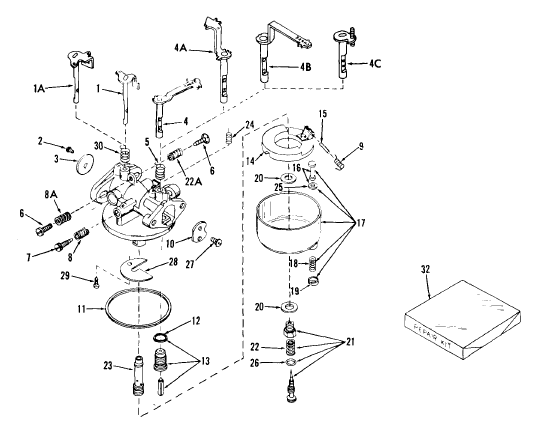

Tecumseh Carburetor 631070

631070

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle31350
2Screw, Sems, 6-32 x 3/1630357
3Shatter, Throttle30726
4Shaft & Lever Assembly., Choke31727
6Screw, Throttle adjusting650399replaces 630605
7Needle, Idle adjusting27112
8ASpring, Adjusting needle27114
8Spring, Adjusting needle27114
10Shutter, Choke30927
11Gasket, Bowl-to-body30356
12Gasket, Valve seat27108
13Valve, Seat & Gasket Assembly.29154
14Float30354
15Shaft, Float27106
16Stem Assembly., Bowl drain27136Areplaces 27136
17Bowl & Drain Assembly.32131replaces 30350
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly., Power adjusting28945
22Spring, Adjusting needle630786
23Nozzle, Main30355
24Spring, Choke stop27113
25Gasket, Drain stem27554
26"O" Ring27544
27Screw, Sems650506replaces 630606
28Baffle, Carburetor30815
29Screw, Baffle30817
30Spring, Throttle return31352
32Repair Kit30359
