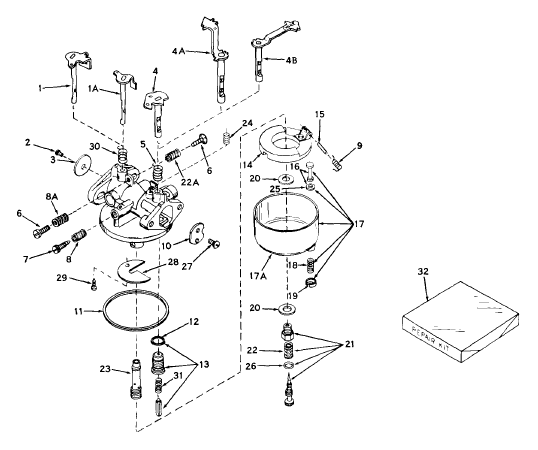

1 | "Shaft & Lever Assembly., Throttle | 31347 | | |
2 | Screw, Sems, 6-32 x 3/16 | 30357 | | |
3 | Shutter, Throttle | 31617 | | |
4 | Shaft & Lever Assembly., Choke | 31374 | | |
5 | Spring, Choke return | 31375 | | |
6 | Screw, Throttle adjusting | 650399 | replaces 630605 | |
7 | Needle, Idle adjusting | 27112 | | |
8A | Spring, Adjusting needle | 27114 | | |
8 | Spring, Adjusting needle | 27114 | | |
10 | Shutter, Choke | 30927 | | |
11 | Gasket, Bowl-to-body | 30356 | | |
12 | Gasket, Valve seat | 27108 | | |
13 | Valve, Seat & Gasket Assembly. | 29154 | | |
14 | Float | 30354 | | |
15 | Shaft, Float | 27106 | | |
16 | Stem Assembly, Bowl drain | 27136A | replaces 27136 | |
17 | Bowl & Drain Assembly | 32131 | replaces 30350 | |
18 | Spring, Bowl drain | 27136A | replaces 27137 | |
19 | Retainer, Bowl drain stem | 27136A | replaces 27138 | |
20 | Gasket, Bowl-to-body | 27110A | replaces 27110 | |
21 | Needle Assembly., Power adjusting | 28945 | | |
22 | Spring, Adjusting needle | 630786 | | |
23 | Nozzle, Main | 31618 | | |
25 | Gasket, Drain stem | 27554 | | |
26 | "O" Ring | 27544 | | |
27 | Screw, Sems | 650506 | replaces 630606 | |
28 | Baffle, Body | 30815 | | |
29 | Screw, Baffle | 30817 | | |
30 | Spring, Throttle return | 31352 | | |
32 | Repair Kit | 30359 | | |
