631040

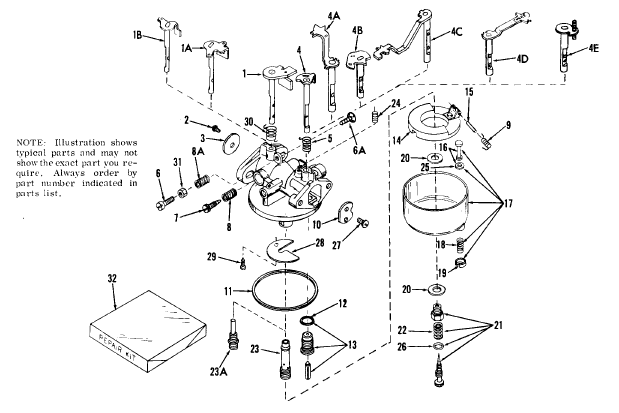

Tecumseh Carburetor 631040
Sl.No | Part Description | Part number | Notes | Purchase |
---|---|---|---|---|
1B | "Shaft & Lever Assembly., Throttle | 30715 | ||
2 | Screw, Sems, 6-32 x 3/16 | 30357 | ||
3 | Shutter, Throttle | 30726 | ||
4D | Shaft & Lever Assembly., Choke | 30948 | ||
6A | Screw, Throttle adjusting | 30717 | ||
8A | Spring, Adjusting needle | 27114 | ||
8 | Spring, Adjusting needle | 27114 | ||
10 | Shutter, Choke | 30927 | ||
17 | Bowl & Drain Assembly. | 32131 | replaces 30350 | |
23A | Jet Assembly., Discharge | 31644 | ||
24 | Spring, Choke stop | 27113 | ||
27 | Screw, Sems | 650506 | replaces 630606 | |
31 | Nut, Flex loc | 30719 |
