Engine Identification

In order to ensure correct Tecumseh Engine Identification all you need to do is to take a closer look at the engine model number which is located under the cover and enter this number on the below mentioned link to get correct and complete information about the engine and its specifications. Identification codes are also mentioned below for 2004 and post 2004 production models.

For pre- 2004 engines you can seek help from Tecumseh conversion charts. Once you succeed in correctly identifying the engine, it becomes a lot easier for you to find the engine parts from the parts lookup table. You can even repair and service these small engines at home. All this is good for ensuring maximum fuel economy and crisp working of the engine.

Tecumseh Snow king

Snow removal is a tricky task. Winter storms and extremely cold conditions can create huge additional work for the homeowners and the small businessmen. Tecumseh can help you to remove a large section of snow. You can find top quality Tecumseh snow King removing equipments such as blowers, snow kings, electric blowers, etc.

The task of snow removing can be performed by the households as well as by the governments and institutions. Browse our large section of tools and equipments to make your work easier and quicker.Tecumseh Engine comes with a pump and auger. The main job of the auger is to churn ice and the same is being sent towards the pump.

Snow which is collected is thrown to a higher distance with the help of a pump. One of the best things about Snow King Engine is that it performs in a highly efficient manner under extreme cold conditions. Famous for its long lasting and quite impressive performance these devices can help you in a very fast and easy manner. As the winter season is approaching fast, you must ensure replacement of the old and faulty parts and clean the inside of the engine with high quality cleaner.

Tecumseh Engine Identification Pre-2004 Models

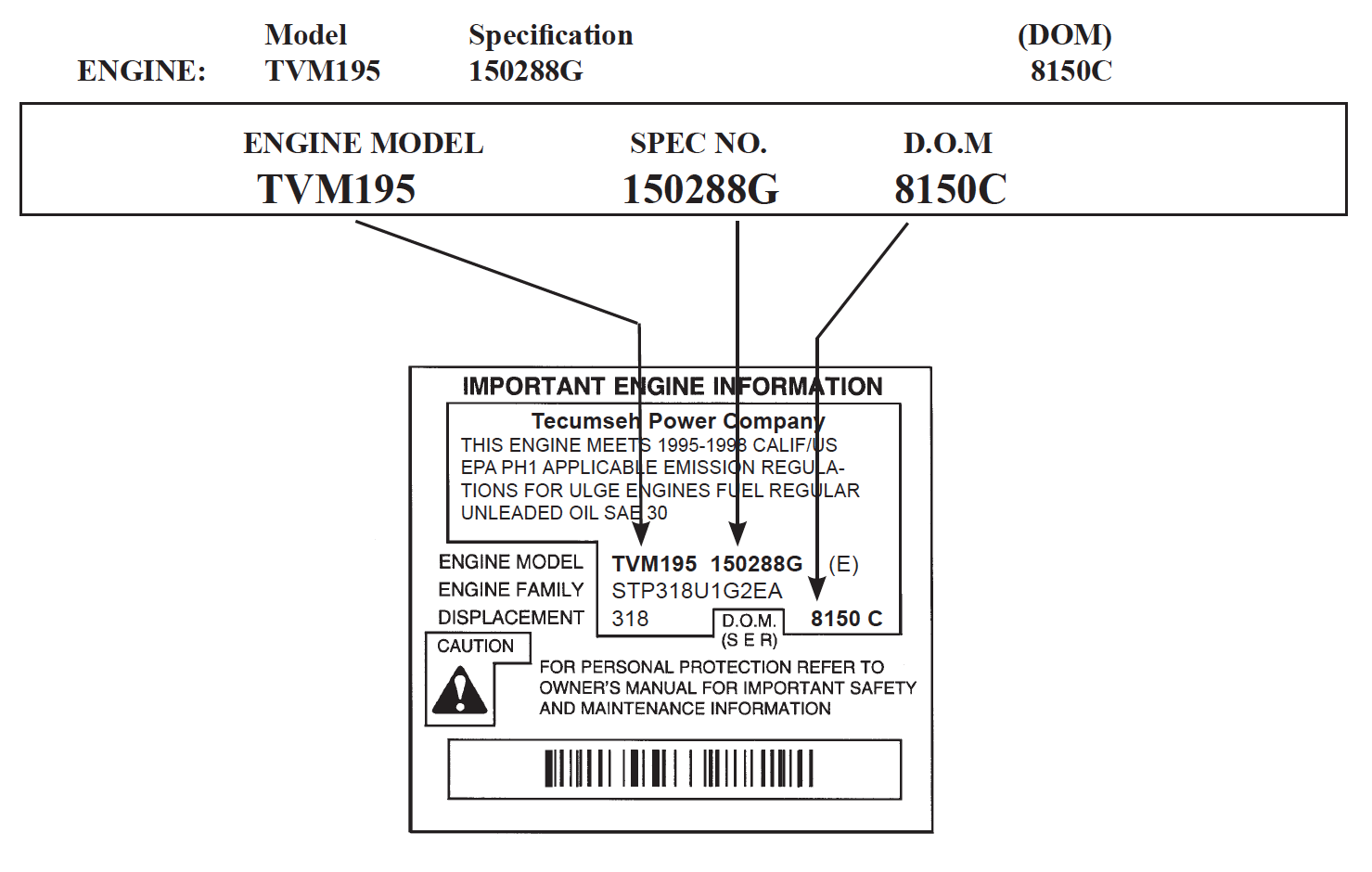

Screen Shot 2014-02-17 at 22.24.11

Engine Model Number Located Under Cover

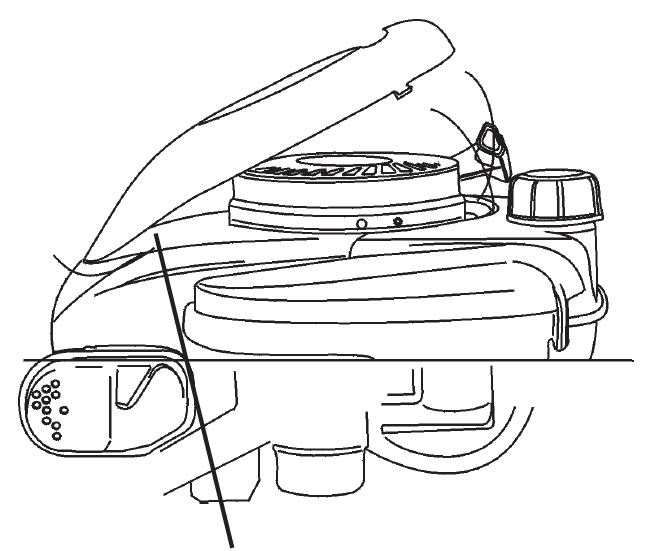

Screen Shot 2014-02-17 at 22.26.38

Engine Model Number Located on Side

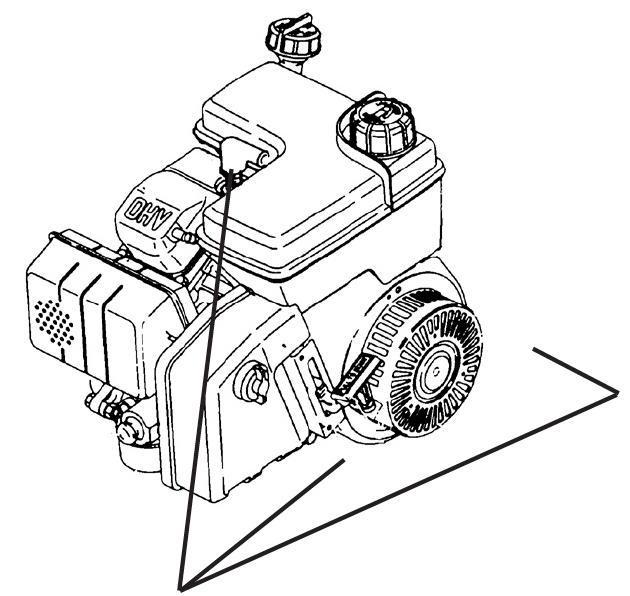

Screen Shot 2014-02-17 at 22.27.02

Engine Number Located on Front

Screen Shot 2014-02-17 at 22.27.13

Tecumseh Engine Identification Post-2004 Models

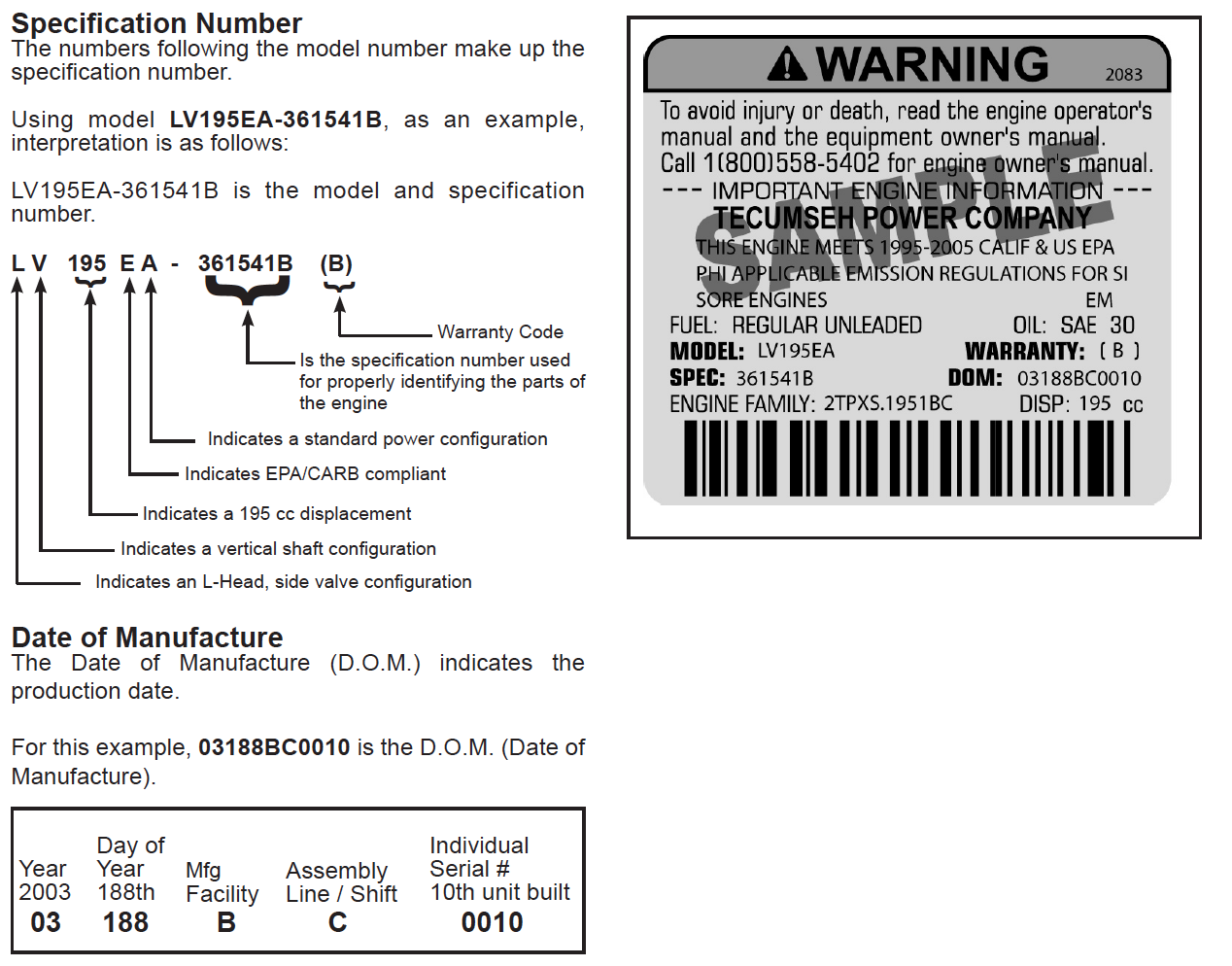

Screen Shot 2014-02-17 at 22.31.36

Engine Model Number Located Under Cover

Screen Shot 2014-02-17 at 22.26.38

Engine Number Located on Side

Screen Shot 2014-02-17 at 22.27.02

Engine Model Number Located on Front

Screen Shot 2014-02-17 at 22.27.13

Tecumseh Engine Identification Codes

Screen Shot 2014-02-17 at 22.38.25

4-Cycle

CodeMeaning
ECHExclusive Craftsman Horizontal
ECVExclusive Craftsman Vertical
HHorizontal Shaft
HHHorizontal Heavy Duty (Cast Iron)
HHMHorizontal Heavy Duty (Cast Iron) (Medium Frame)
HMHorizontal Medium Frame
HMSKHorizontal Medium Frame (Snow King)
HMXLHorizontal Medium Frame (Extra Life)
HSHorizontal Small Frame
HSSKHorizontal Small Frame (Snow King)
HXLHorizontal (Extra Life)
LAVLightweight Aluminum Frame Vertical
LEVLow Emissions Vertical
LHL-Head Horizontal
LVL-Head Vertical
OHOverhead Valve Heavy Duty (Cast Iron)
OHHOverhead Valve Horizontal
OH195Overhead Valve Horizontal (195 cc's)
OHMOverhead Valve Heavy Duty Horizontal (Medium Frame)
OHSKOverhead Valve Horizontal (Snow King)
OHVOverhead Valve Vertical (Medium Frame)
OVOverhead Valve Vertical
OVMOverhead Valve Vertical (Medium Frame)
OVRMOverhead Valve Vertical (Small Frame) (Rotary Mower)
OVXLOverhead Valve Vertical (Medium Frame) (Extra Life)
TNTToro ÔNÕ TecumsehPower (Toro Exclusive Series)
TVEMTecumsehPower Vertical European Model
TVMTecumsehPower Vertical (Medium Frame) (Replaces V & VM)
TVSTecumsehPower Vertical Styled
TVTTecumsehPower Vertical Twin
TVXLTecumsehPower Vertical (Extra Life)
VVertical Shaft
VHVertical Heavy Duty (Cast Iron)
VLVVector Lightweight Vertical
VLXLVector Lightweight Vertical (Extra Life)
VMVertical Shaft (Medium Frame)
VSKVertical Snow King
VTXVertical Twin

2-Cycle

CodeMeaning
THTwo Cycle Horizontal Shaft
TMTwo Cycle Multi-position Operation
TVTwo Cycle Vertical Shaft

Tecumseh Engine Identification Conversion Charts for Pre-2004 Engines

4-Cycle

Old Model NumberNew Model Number
LEV90LV148EA
LEV 120LV195EA
HSSK50LH195SA
HSSK55LH195SP
VSK90LV148SA
OHV135OV358EA
OHV180OV490EA
TVT691OV691EA
VTX691OV691EP
OHH60OH195EA
OHH65OH195EP
OHSK70OH195SA
OHSK75OH195SP
HMSK90LH318SA
HMSK110LH358SA
OHSK110OH318SA
OHSK130OH358SA
OHM110OH318EA

2-Cycle

Old Model NumberNew Model Number
TC300TM049XA
HSK870TH139SP
HSK600TH098SA
AV520TV085XA
