Tecumseh Carburetor 630891

630891

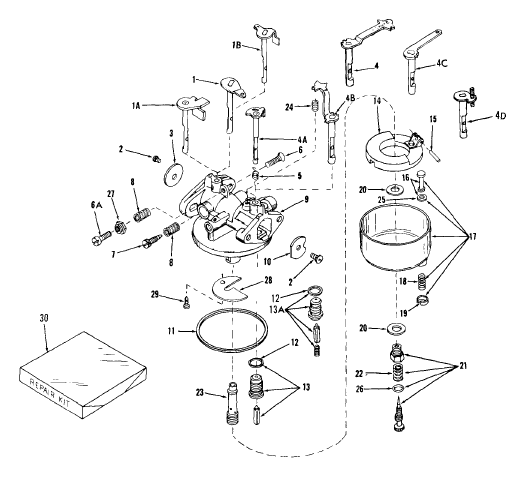

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle30849
2Screw, Sems, 6-32 x 3/1630357
3Shutter, Throttle30726
4Shaft & Lever Assembly., Choke30850
6AScrew, Throttle adjusting650399replaces 27115
7Needle, Idle27112
8Spring, Adjustment. needle27114
9Body Assembly., Carburetor30848
10Shutter, Choke28924
11Gasket, Bowl-to-body30356
12Gasket, Seat27108
13Valve, Seat & Gasket Assembly.29154
14Float30354
15Shaft, Float27106
16Stem Assembly., Bowl drain27136Areplaces 27136
17Bowl Assembly.32131replaces 30350
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem .27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly., Power adjusting28945
22Spring, Power needle630786
23Nozzle, Main30355
24Spring, Choke stop27113
25Gasket, Drain stem27554
26"O" Ring27544
28Baffle, Carburetor30815
29Screw, Baffle30817
30Repair Kit30359

Displaying important sections and component wise detail of Tecumseh CA-630891. View complete carburetor part details in table.
