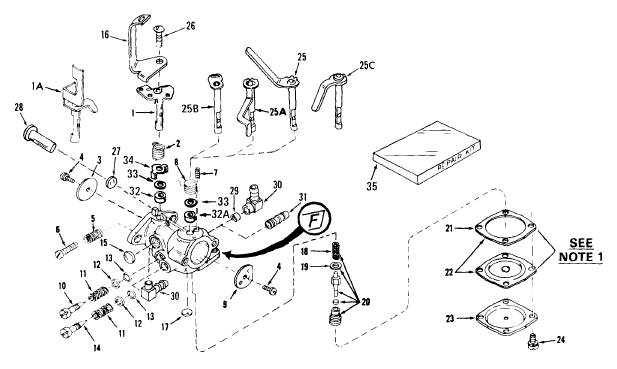

Tecumseh Carburetor 630892

630892

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle631863Creplaces 631863
3Shutter, Throttle631036
4Screw, Throtttle & Choke shutter650506
5Spring, Regulating screw630766
6Screw, Idle regulating651025replaces 650417
7Spring, Choke positioning630735
9Shutter, Choke630758
10Screw, Idle adjustment631562
11Spring, Adjustment screw630738
12Washer, Adjustment screw630739
13"O" Ring, Adjustment screw630740
14Screw, Main adjustment630737
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve Seat630742
20Inlet Needle, Seat, Gasket & Spring Assembly.630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw, Cover650545
25AShaft & Lever Assembly., Choke630904
30Fitting, Fuel inlet632527replaces 631775
35Repair Kit631893Areplaces 631893
