630905

Tecumseh Carburetor 630905

630905

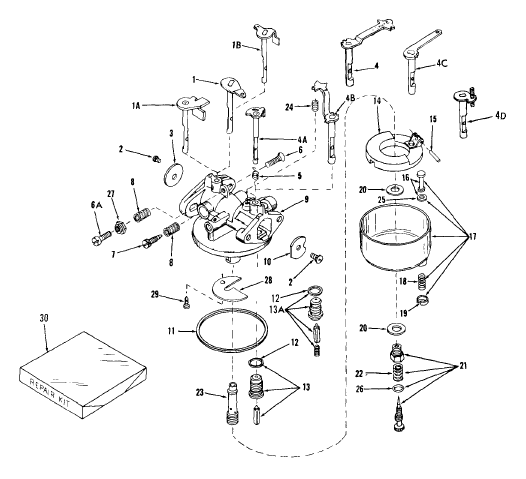

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle30855
2Screw, Sems, 6-32 x 3/1630357
3Shutter, Throttle30726
4Shaft & Lever Assembly., Choke30716
6Screw, Throttle adjusting30717
8Spring, Adjustment. needle27114
9Body Assembly., Carburetor30854
10Shutter, Choke28924
11Gasket, Bowl-to-body30356
12Gasket, Seat27108
13Valve, Seat & Gasket Assembly.29154
14Float30354
15Shaft, Float27106
16Stem Assembly., Bowl drain27136Areplaces 27136
17Bowl Assembly.32131replaces 30350
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem.27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Neede Assembly., Power adjusting28945
22Spring, Power needle630786
23Nozzle, Main30355
24Spring, Choke stop27113
25Gasket, Drain stem27554
26"O" Ring27544
27Nut, Flexloc30719
30Repair Kit30359

Your preferred source for Tecumseh 630905 part details. Use our manual and troubleshooting guide for proper functioning of Tecumseh Carburetor.
