Tecumseh Carburetor 630915

630915

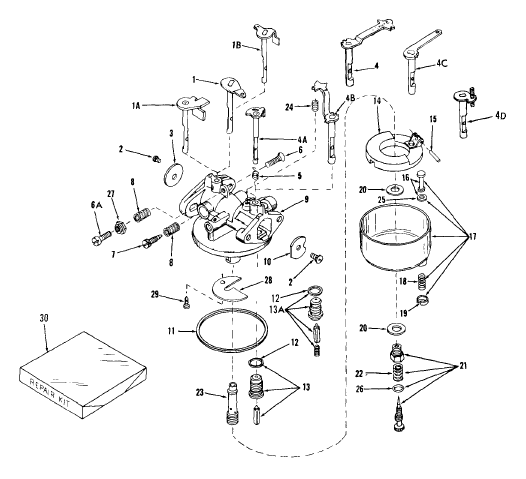

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle30723
2Screw, Sems, 6-32 x 3/1630357
3Shutter, Throttle30726
4AShaft & Lever Assembly., Choke30921
5Spring, Choke return30922
6Screw, Throttle adjusting30717
8Spring, Adj. needle27114
9Body Assembly., Carburetor30920
10Shutter, Choke28924
11Gasket, Bowl-to-body30356
12Gasket, Seat27108
13Valve, Seat & Gasket Assembly.29154
14Float30354
15Shaft, Float27106
16Stem Assembly., Bowl drain27136Areplaces 27136
17Bowl Assembly.32131replaces 30350
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem.27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly., Power adjusting28945
22Spring, Power needle630786
23Nozzle, Main30355
25Gasket, Drain stem27554
26"O" Ring27544
27Nut, Flexloc30719
30Repair Kit30359replaces 30725

Complete Tecumseh Carburetor Guide with details about Tecumseh CA 630915 and its parts details about throttle, screws and delicate parts.
