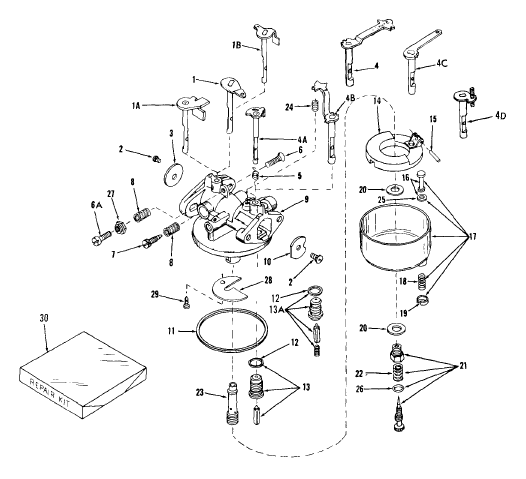

Tecumseh Carburetor 630917

630917

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle27784
2Screw, Throttle & choke valve650506replaces 630606
3Shutter, Throttle27553
4BShaft & Lever Assembly., Choke30903
6AScrew, Throttle adjusting650399replaces 630605
7Needle, Idle27112
8Spring, Adjustment. needle27114
9Body Assembly., Carburetor30184replaces 27783
10Shutter, Choke28924
11Gasket, Bowl-to-body27109
12Gasket, Seat27108
13Valve, Seat & Gasket Assembly.29154
14Float27105
15Shaft, Float27106
16Stem Assembly., Bowl drain27136Areplaces 27136
17Bowl Assembly.29170
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem.27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly., Power adjusting28945
23Nozzle, Main29139
24Spring, Choke stop27113
25Gasket, Drain stem27554
26"O" Ring27544
30Repair Kit29155
