Tecumseh Carburetor 630941

630941

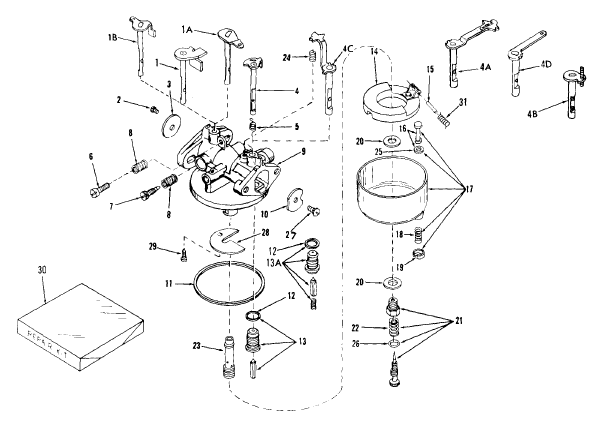

Sl.NoPart DescriptionPart numberNotesPurchase
1B"Shaft & Lever, Throttle30715
2Screw, Sems, 6-32 x 3/1630357
3Shutter, Throttle30726
4BShaft & Lever Assembly., Choke30951
5Spring, Choke return30922
6Screw, Throttle adjusting650399replaces 630605
7Needle, Idle27112
8Spring, Adjustment. needle27114
9Body Assembly., Carburetor30950
9Body Assembly., Carburetor30950
10Shutter, Choke30927
11Gasket, Bowl-to-body30356
12Gasket', Seat27108
13AValve, Seat, Gasket &, Spring Assembly.30720
14Float30354
15Shaft, Float27106
16Stem Assembly., Bowl drain27136Areplaces 27136
17Bowl Assembly.,32131replaces 30350
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly., Power Adjustment.28945
22Spring, Power needle630786
23Nozzle, Main30355
24Spring, Choke stop27113
25Gasket, Drain stem27554
26"O" Ring27544
27Screw, Sems650506replaces 630606
28Baffle, Carburetor30815
29Screw, Baffle30817
30Repair Kit30721
