Tecumseh Carburetor 630945

630945

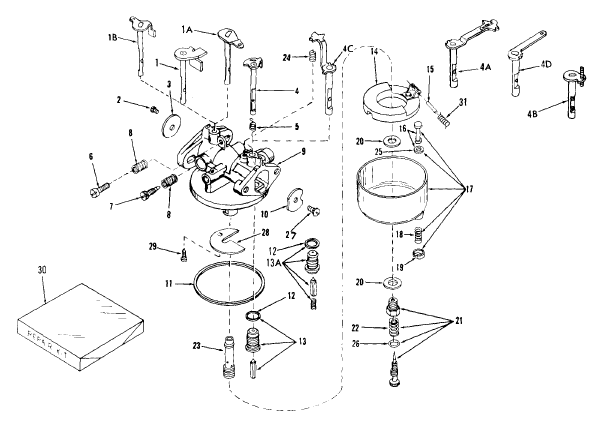

Sl.NoPart DescriptionPart numberNotesPurchase
1B"Shaft & Lever, Throttle30715
2Screw, Sems, 6-32 x 3/1630357
3Shutter, Throttle30726
4AShaft & Lever Assembly., Choke30948
6Screw, Throttle adjusting650399replaces 630605
7Needle, Idle27112
8Spring, Adjustment. needle27114
9Body Assembly., Carburetor30950
10Shutter, Choke30927
11Gasket, Bowl-to-body30356
12Gasket', Seat27108
13Valve, Seat, Gasket Assembly.29156
14Float30354
15Shaft, Float27106
16Stem Assembly., Bowl drain27136Areplaces 27136
17Bowl Assembly.,32131replaces 30350
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly., Power Adjustment.28945
22Spring, Power needle630786
23Nozzle, Main30355
24Spring, Choke stop27113
25Gasket, Drain stem27554
26"O" Ring27544
27Screw, Sems650506replaces 630606
28Baffle, Carburetor30815
29Screw, Baffle30817
30Repair Kit31390
31Spring, Float shaft31503
