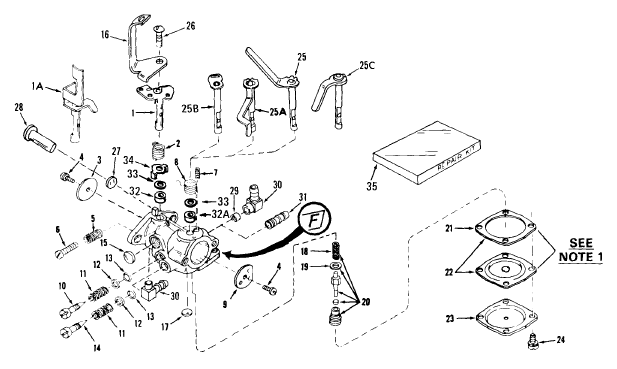

Tecumseh Carburetor 630969

630969

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle630970
2Spring, Return631767replaces 632016
3Shutter, Throttle631036
4Screw, Throtttle & Choke shutter650506
5Spring, Regulating screw630766
6Screw, Idle regulating651025replaces 650417
7Spring, Choke positioning630735
9Shutter, Choke630736
10Screw, Idle adjustment631562
11Spring, Adjustment screw630738
12Washer, Adjustment screw630739
13"O" Ring, Adjustment screw630740
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve Seat630742
20Inlet Needle, Seat, Gasket & Spring Assembly.630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw, Cover650545
25CShaft & Lever Assembly., Choke630963
25AShaft & Lever Assembly., Choke630971
30Fitting, Fuel inlet632527replaces 631775
35Repair Kit631893Areplaces 631893
