Tecumseh Carburetor adjustment 631002

631002

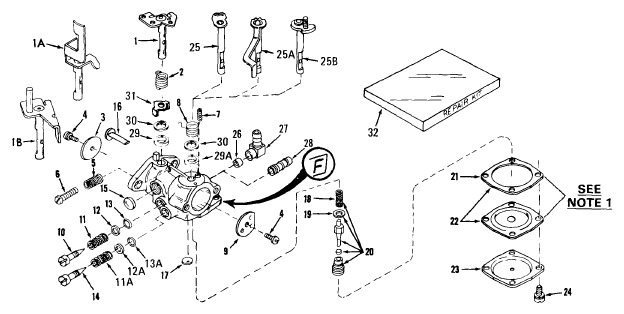

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle631615
2Spring, Throttle return631767replaces 632016
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
5Spring, Regulating screw630766
6Screw, Idle regulating651025replaces 650417
8Spring, Choke return632045
9Shutter, Choke630758
10Screw, Idle adjustment.631562
11Spring, adjustment. screw630738
12Washer, adjustment. screw630739
13"O" Ring, adjustment. screw630740
15Plug, Welch630748
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Valve, Seat & Gasket Assembly.630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw, Cover650545
25Shaft & Lever Assembly., Choke630973
27Fitting, Fuel inlet632527replaces 631775
32Repair Kit631893Areplaces 631893
