Tecumseh Carburetor 631007

631007

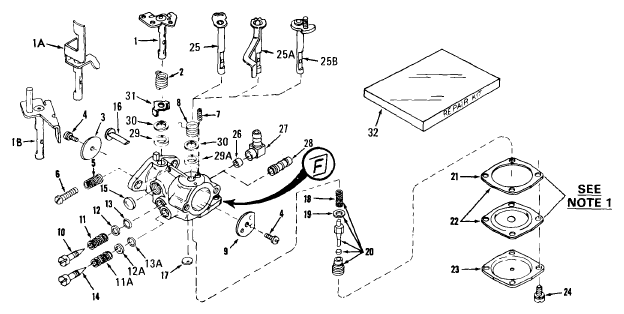

Sl.NoPart DescriptionPart numberNotesPurchase
1B"Shaft & Lever Assembly., Throttle631030
2Spring, Throttle return631045
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
7Spring, Choke positioning630735
9Shutter, Choke630758
10Screw, Idle Adjustment.630898
11Spring, Adjustment. screw630738
11ASpring, Adjustment. screw630738
12AWasher, Adjustment. screw630739
12Washer, Adjustment. screw630739
13"O" Ring, Adjustment. screw630740
13A"O" Ring, Adjustment. screw630740
14Screw, Main Adjustment.630898
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Valve, Seat & Gasket Assembly.630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw, Cover650545
25AShaft & Lever Assembly., Choke630971
28Fitting, Fuel inlet632164replaces 631803
32Repair Kit631893Areplaces 631893
