631070A

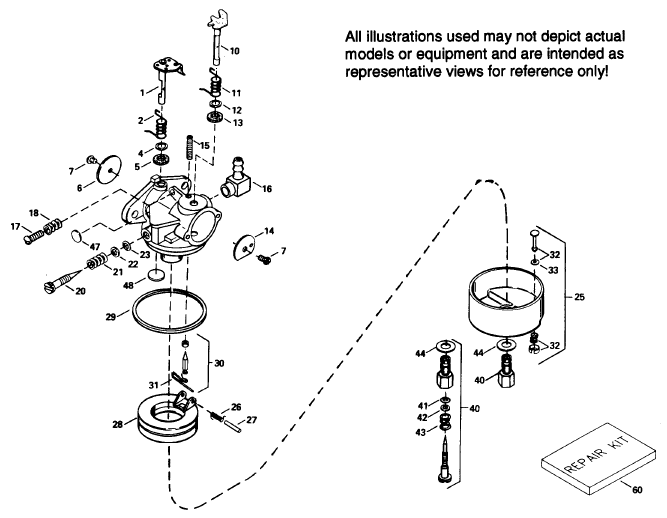

Tecumseh Carburetor 631070A
Sl.No | Part Description | Part number | Notes | Purchase |
---|---|---|---|---|
0 | "Carburetor | 631921 | replaces 631070A | |
1 | SHAFT & LEV | 631615 | ||
2 | SPRING | 631767 | ||
4 | WASHER | 631184 | ||
5 | WASHER | 631183 | ||
6 | SHUTTER | 631036 | ||
7 | Screw, 4-40 x 1/4" | 650506 | ||
10 | SHAFT & LEV | 31859 | ||
11 | SPRING | 632042 | ||
12 | WASHER | 631184 | ||
13 | WASHER | 631183 | ||
14 | SHUTTER | 31837 | ||
15 | SPRING | 630735 | ||
16 | FUEL FITTING | 632527 | ||
17 | SCREW | 651025 | replaces 650417 | |
18 | SPRING | 630766 | ||
20 | ADJUSTMENT SCREW | 631838 | ||
21 | SPRING | 630766 | ||
22 | WASHER | 630739 | ||
23 | O RING | 630740 | ||
25 | Float Bowl (no drain) | 631867 | ||
27 | FLOAT SHAFT | 631024 | ||
28 | FLOAT | 632019A | replaces 632019 | |
29 | GASKET | 631028A | replaces 631028 | |
30 | Inlet Needle, Seat & Clip Assembly. | 631021B | replaces 631021 | |
31 | CLIP | 631022 | ||
40 | POWER SCREW | 31839 | ||
41 | O RING | 630740 | ||
42 | WASHER | 630739 | ||
43 | SPRING | 630738 | ||
44 | GASKET | 27110A | replaces 27110 | |
47 | WELCH PLUG | 630748 | ||
48 | WELCH PLUG | 631027 | ||
60 | REPAIR KIT | 31840 |
