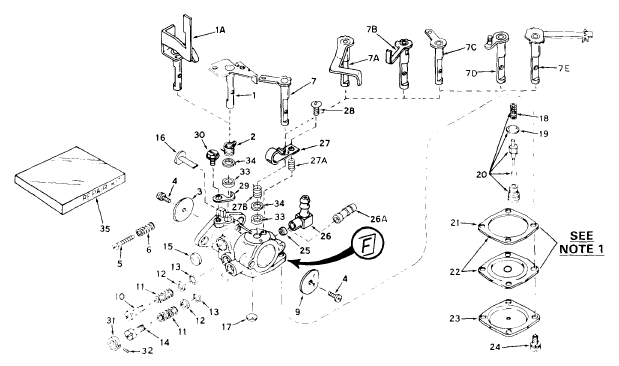

Tecumseh Carburetor 631129

631129

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle631868
2Spring, Throttle return631767replaces 632016
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
5Screw, Idle Regulating651025replaces 650417
6Spring, Idle speed screw630766
7DShaft & Lever Assembly., Choke631130
9Shutter, Choke630736
10Screw, Idle Adjustment.630898
11Spring, Adjustment. screw630738
12Washer, Adjustment. screw630739
13"O" Ring, Adjustment. screw630740
14Screw, Main Adjustment.630737
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Spring & Gasket Assembly.,630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw650545
26AFitting, Fuel inlet632164replaces 631803
27Spring, Detent631048
28Screw650569
35Repair Kit631893Areplaces 631893
