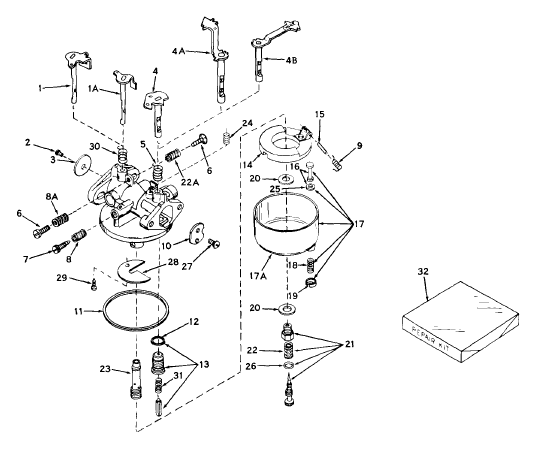

Tecumseh Carburetor 631157

631157

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle31994
2Screw, Sems, 4-40 x 3/16650506replaces 630606
3Shutter, Throttle31995
4AShaft & Lever Assembly., Choke631499replaces 31996
6Screw, Throttle adjusting650399replaces 630605
7Needle, Idle adjusting27112
8ASpring, Adjusting needle27114
8Spring, Adjusting needle27114
9Spring, Float shaft31503
10Shutter, Choke30927
11Gasket, Bowl-to-body27109
12Gasket, Valve seat27108
13Valve, Seat & Gasket Assembly.32256Areplaces 31998
14Float27105
15Shaft, Float27106
16Stem Assembly, Bowl drain27136Areplaces 27136
17Bowl & Drain Assembly29170replaces 630596
18Spring, Bowl drain27136Areplaces 27137
19Retainer, Bowl drain stem27136Areplaces 27138
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly., Power adjusting28945
22Spring, Adjusting needle630786
23Nozzle, Main29139
24Spring, Choke stop27113
25Gasket, Drain stem27554
26"O" Ring27544
27Screw, Sems650506replaces 630606
30Spring, Throttle return32096
31Spring, Float valve32076
32Repair Kit32256Areplaces 31999
