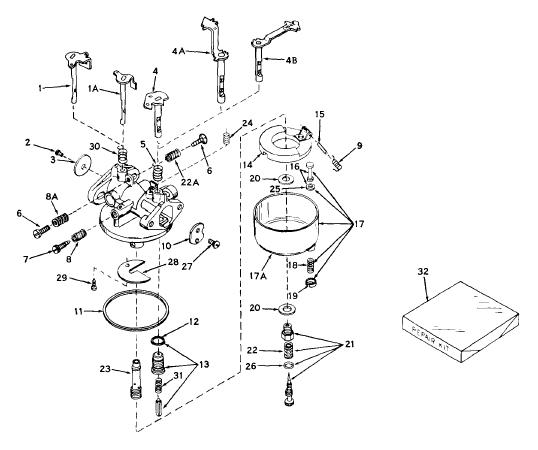

Tecumseh Carburetor 631166

631166

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle31705
2Screw, Sems, 6-32 x 3/1630357
3Shutter, Throttle31617
4AShaft & Lever Assembly., Choke31706
6Screw, Throttle adjusting31687
7Needle, Idle adjusting32133
8Spring, Adjusting needle27114
10Shutter, Choke30927
11Gasket, Bowl-to-body30356
17ABowl, Fuel32131
20Gasket, Bowl-to-body27110Areplaces 27110
21Needle Assembly., Power adjusting32132
22ASpring, Adjusting needle630786
22Spring, Adjusting needle630786
24Spring, Choke stop27113
26"O" Ring27544
27Screw, Sems650506replaces 630606
32Repair Kit32134
