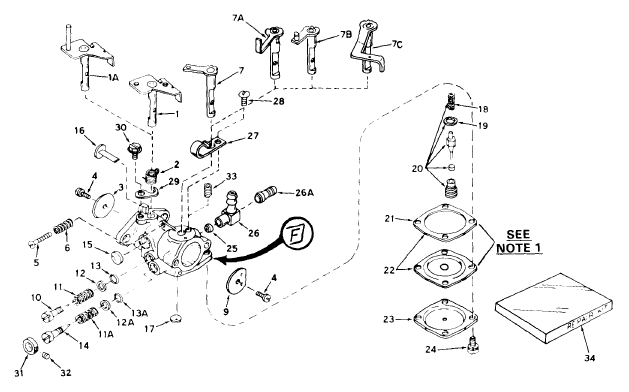

Tecumseh Carburetor 631186

631186

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle631868
2Spring, Throttle return631066
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
5Screw, Idle regulating651025replaces 650417
6Spring, Idle speed screw630766
7AShaft & Lever Assembly., Choke630951
9Shutter, Choke630758
10Screw, Idle Adjustment.631562
11Spring, Idle Adjustment. screw630738
11ASpring, Main Adjustment. screw630738
12AWasher, Main Adjustment. screw630739
12Washer, Idle Adjustment. screw630739
13"O" Ring, Idle Adjustment. screw630740
13A"O" Ring, Main Adjustment. screw630740
14Screw, Main Adjustment.630737
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Gasket & Spring Assembly.630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw, Cover650545
26Fitting, Fuel inlet631855
33Spring, Choke positioning630735
34Repair Kit631893Areplaces 631893
