Tecumseh Carburetor 631245

631245

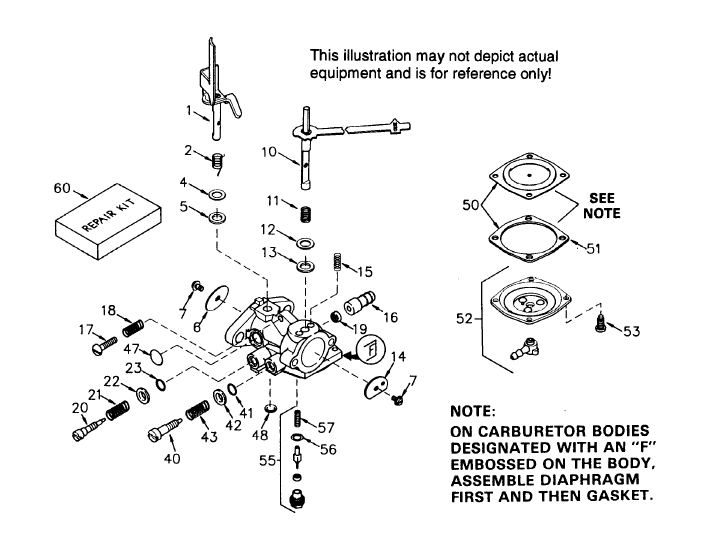

Sl.NoPart DescriptionPart numberNotesPurchase
0"Carburetor631921replaces 631245
1SHAFT & LEV631615
2SPRING631767
4WASHER631184
5WASHER631183
6SHUTTER631036
7Screw, 4-40 x 1/4"650506
16FUEL FITTING32249
17SCREW651025replaces 650417
18SPRING630766
19CHECK VALVE631201
19DISK632163
20ADJUSTMENT SCREW631562
20AADJUSTMENT SCREW630737
21SPRING630738
22WASHER630739
23O RING630740
47WELCH PLUG630748
48WELCH PLUG632554replaces 630746
50Diaphragm Assembly.630978
51GASKET630750Areplaces 630750
52COVER32185
53SCREW650545
55Inlet needle, Valve, Seat & Gasket As630932A
56GASKET630742
57SPRING631049
