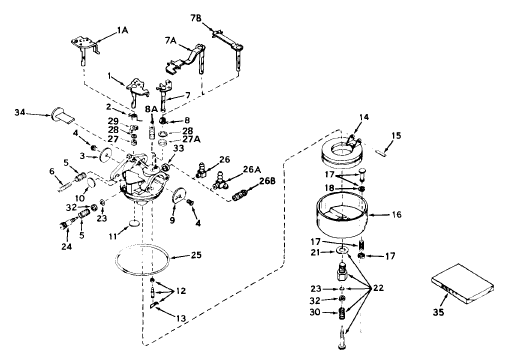

Tecumseh Carburetor 631274

631274

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle630889
2Spring, Throttle return631045
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
5Spring, Regulating screw630766
6Screw, Idle regulating651025replaces 650417
7AShaft & Lever Assembly., Choke630904
8ASpring, Choke positioning630735
9Shutter, Choke31837
10Plug, Welch630748
11Plug, Welch631027
12Inlet Needle, Seat & Clip Assembly.631021Breplaces 631021
13Clip, Inlet needle631022
14Float, Carburetor632019Areplaces 632019
15Shaft, Float631024
16Bowl & Drain Assembly., Float631951
17Plunger Assembly., Drain27136A
18Gasket, Drain plunger27554
21Gasket, Bowl-to-body27110Areplaces 27110
22Adjustment. Screw Assembly., Main631179
23"O" Ring, Adjustment. screw630740
24Screw, Idle Adjustment.631838replaces 631078
25Gasket, Bowl-to-body631028Areplaces 631028
26Fitting, Fuel inlet631357
30Spring, Main Adjustment. screw630738
32Washer630739
33Valve, Check631032
34Element, Pump630953
35Repair Kit631180
