Tecumseh Carburetor 631306

631306

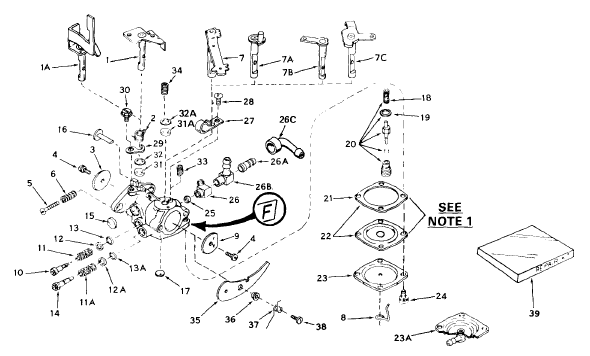

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle631187
2Spring, Throttle return631066
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
5Screw, Idle regulating651025replaces 650417
6Spring, Idle regulating screw630766
8Spring631319
10Screw, Idle Adjustment.631562
11Spring, Adjustment. screw630738
11ASpring, Adjustment. screw631192
12AWasher, Adjustment. screw631191
12Washer, Adjustment. screw630739
13"O" Ring, Adjustment. screw630740
13A"O" Ring, Adjustment. screw631190
14Screw, Main Adjustment.631189
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Gasket & Spring630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23ACover Assembly., Diaphragm32185
24Screw, Cover650545
25Valve, Check631201
26AFitting, Fuel inlet632164replaces 631803
29Retainer, Throttle shaft630955
30Screw650545
35Plate, Choke cam631307
36Spacer631308
37Spring631309
38Screw650644
39Repair Kit631893Areplaces 631893
