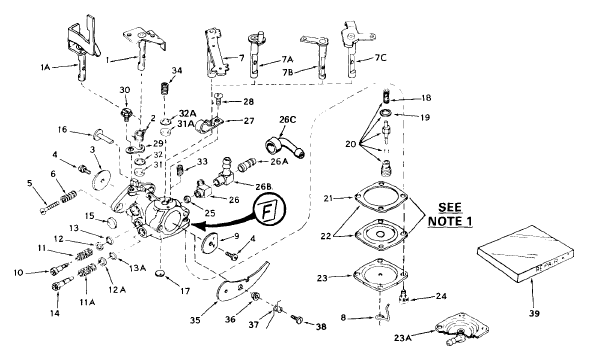

Tecumseh Carburetor 631310

631310

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle631255
2Spring, Throttle return631767replaces 632016
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
7Shaft & Lever Assembly., Choke631300
9Shutter, Choke630736
10Screw, Idle Adjustment.631562
11Spring, Adjustment. screw630738
12Washer, Adjustment. screw630739
13"O" Ring, Adjustment. screw630740
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Gasket & Spring630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw, Cover650545
26AFitting, Fuel inlet632164replaces 631803
33Spring, Choke positioning630735
39Repair Kit631893Areplaces 631893
