631320

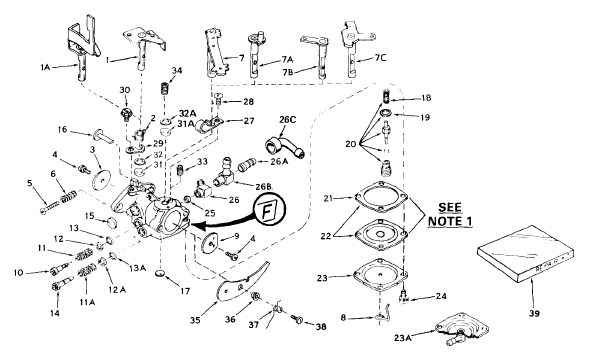

Tecumseh Carburetor 631320

631320

Sl.NoPart DescriptionPart numberNotesPurchase
1A"Shaft & Lever Assembly., Throttle631255
2Spring, Throttle return631767replaces 632016
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
5Screw, Idle regulating651025replaces 650417
6Spring, Idle regulating screw630766
7Shaft & Lever Assembly., Choke631321
10Screw, Idle Adjustment.631562
11Spring, Adjustment. screw630738
11ASpring, Adjustment. screw630738
12AWasher, Adjustment. screw630739
12Washer, Adjustment. screw630739
13"O" Ring, Adjustment. screw630740
13A"O" Ring, Adjustment. screw630740
14Screw, Main Adjustment.630737
15Plug, Welch630748
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Gasket & Spring630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23ACover Assembly., Diaphragm32185
24Screw, Cover650545
25Valve, Check631201
26AFitting, Fuel inlet632164replaces 631803
33Spring, Choke positioning630735
39Repair Kit631893Areplaces 631893
