Tecumseh Carburetor 631324

631324

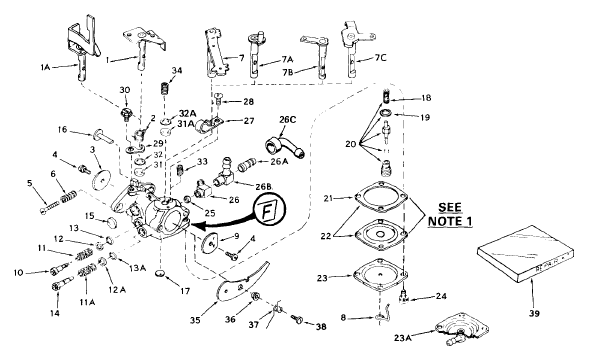

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle631339
2Spring, Throttle return631045
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
5Screw, Idle regulating651025replaces 650417
6Spring, Idle regulating screw630766
7CShaft & Lever Assembly., Choke631318
9Shutter, Choke630736
10Screw, Idle Adjustment.630898
11Spring, Adjustment. screw630738
11ASpring, Adjustment. screw631192
12AWasher, Adjustment. screw631191
12Washer, Adjustment. screw630739
13"O" Ring, Adjustment. screw630740
13A"O" Ring, Adjustment. screw631190
14Screw, Main Adjustment.631189
15Plug, Welch630748
16Element, Pump630953
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Gasket & Spring630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover, Diaphragm630751
24Screw, Cover650545
25Valve, Check631201
26Fitting, Fuel inlet631202
27Spring, Detent631293
28Screw650569
29Retainer, Throttle shaft630955
30Screw650545
39Repair Kit631893Areplaces 631893
