631375A

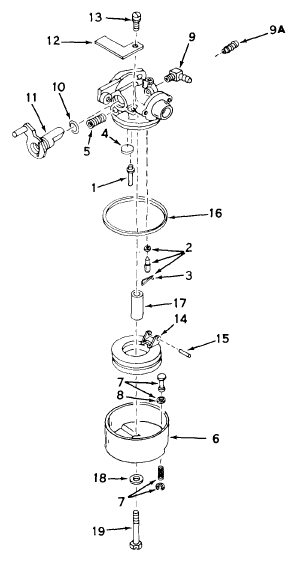

Tecumseh Carburetor 631375A

631375A

Sl.NoPart DescriptionPart numberNotesPurchase
1"Tube, Fuel pickup631376
2Inlet Needle & Spring Assembly.631021Breplaces 631021
3Spring, Inlet needle631022
4Plug, Welch631377
5Spring, Positioning630735
6Bowl, Float631378
9Fitting, Fuel632527replaces 631775
10"O" Ring631379
11Valve, Control631620A
12Plate, Retaining631381
13Screw, Fil. hd. Sems, 8-32 x 3/8650152
14Float, Carburetor632019Areplaces 632019
15Shaft, Float631024
16Gasket, Bowl-to-body631028Areplaces 631028
17Spacer, Bowl631378replaces 631382
18Washer, Fiber631383
19Screw, Hex slotted hd. mach., 10-24 x 1-1/4650652
