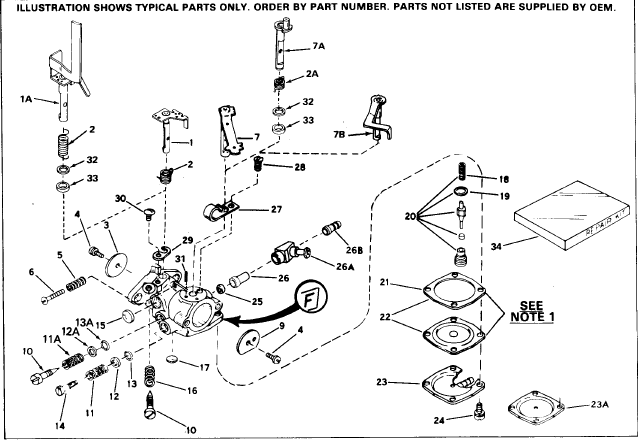

Tecumseh Carburetor 631384

631384

Sl.NoPart DescriptionPart numberNotesPurchase
1"Shaft & Lever Assembly., Throttle631385
2Spring, Throttle return631066
3Shutter, Throttle631036
4Screw, Throttle & Choke shutter650506
5Spring, Idle speed regulating630766
6Screw, Idle regulating651025replaces 650417
7Shaft & Lever Assembly., Choke631450
9Shutter, Choke631386
10Screw, Idle Adjustment.631387
11Spring, Main Adjustment. screw630738
12Washer, Main Adjustment. screw630739
13"O" Ring, Main Adjustment. screw630740
14Screw, Main Adjustment.630898
15Plug, Welch630748
16Spring, Idle Adjustment. screw631345
17Plug, Welch632554replaces 630746
18Spring, Valve631049
19Gasket, Valve seat630742
20Inlet Needle, Seat, Spring & Gasket Assembly.630932A
21Gasket, Diaphragm630750Areplaces 630750
22Diaphragm Assembly.630978
23Cover Assembly., Diaphragm32185
24Screw650545
25Valve, Check631201
26Fitting, Fuel inlet32249
27Spring, Detent631048
28Screw, Detent spring650569
29Retainer, Throttle shaft630955
30Screw, Throttle shaft retainer650569
34Repair Kit631893Areplaces 631893
